Sheave Gauges

Various

6030

Continue Shopping or Checkout

Sheave gauges are used to check sheave grooves for wear.  A worn groove can block or slow the wire rope.

Metal Sheaves are available in standard sizes. Durable enough to withstand repeated use. Long lasting, chemical and weather resistant.

Plastic Sheaves and made of durable resilient plastic, in both standard and metric.

All our sheave gauges, metal and plastic, are rated at +2.5%

  • Metal - 14 Gauges - .25" to 1.5" ($24 each set)
    • Includes the following sizes: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 1/2"
  • Metal - 11 Gauges - 1.25" to 2.5" ($24 each set)
    • Includes the following sizes: 1 1/4", 1 3/8", 1 1/2", 1 5/8", 1 3/4", 1 7/8", 2", 2 1/8", 2 1/4", 2 3/8", 2 1/2"

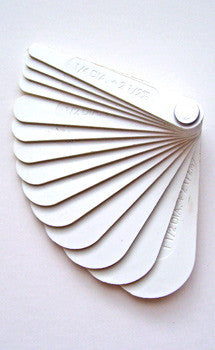

  • Plastic - 14 Gauges - .25" to 1.5" ($22 each set)
    • Includes the following sizes: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 1/2"

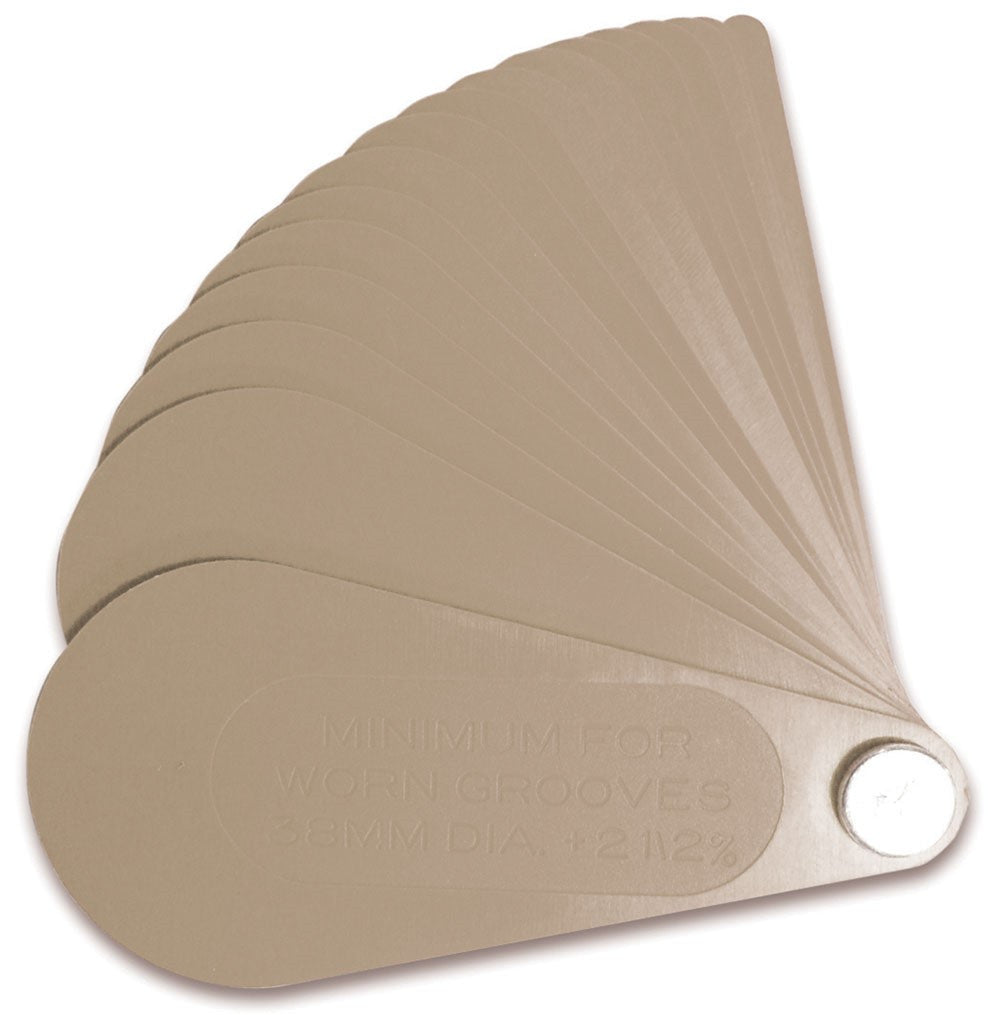

  • Plastic Metric - 17 Gauges - 6mm to 38mm ($22 each set)
    • Includes the following sizes: 6mm, 8mm, 11mm, 13mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 36mm, 38mm

Type: Tool

Vendor: Various
